// Gaussian procedure command
//
//this function is used to generate gaussian procedure accoding to the procedure on N dimmension.

//syntax
gproc wave by id/
(option)
;
//option
//parameters are refferd from PRML (6.63)
//K(Xn,Xm) = theta exp(-sigma/2 ||Xn-Xm||^2) + delta + beta Xn'Xm
theta = 0.33 (default)
sigma = 25.0 (default)
delta =  1.0 (default)
beta  = 12.0 (default)
num=nn    //view points interval is same and adjusted, if num > datasize . (100 default)
pitch=mm  //view points interval is adujusted same pich. (10 default)

//Examble
//making point procedure on 2d plane.
hand t1 t2 stock20/
1	-18	  -1.992561
21	-12 	  -1.620277
41	-6 	  -1.591967
61	 0	  -1.046988
81	6	  0.057125
101	12	  0.495939
181	38	  0.892287
201	54	  1.373567
221	83	  0.76489
241	102	  0.184523
;
put work;

get work;

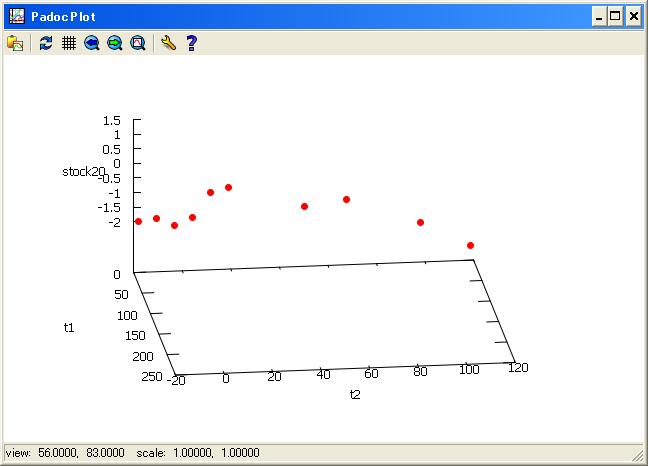

  //view point procedure
  plot line stock20 by t1 t2;

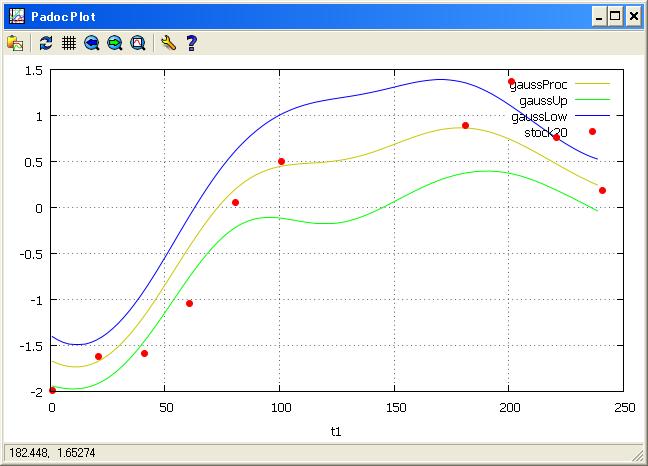

//generage gaussian procedure with upper and lower side
get work;
  gproc stock20 by t1 t2;
  anaput ana1;

get ana1;
  plot line stock20 gaussProc gaussUp gaussLow by t1/
	 color=yellow
	;
get wave2;
  over line stock20 by t1/
    marker=OF
    color=red
  ;

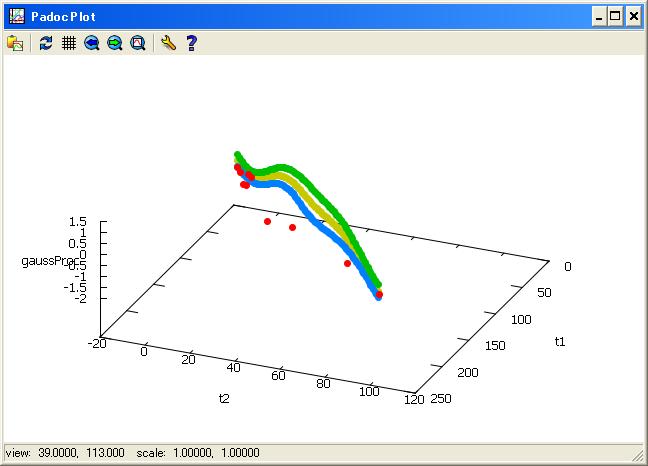

//view gaussian process on 3D.
get ana1;
  plot scat t1 t2 gaussProc;
    marker=OF
    color=yellow
  ;
  over scat t1 t2 gaussUp;
    marker=OF
    color=blue
  ;
  over scat t1 t2 gaussLow;
    marker=OF
    color=gree
  ;
get wave2;
 over scat t1 t2 stock20;
    marker=OF
    color=red
  ;
